Gyxtw Armored 12 Core Fiber Optic Cable Custom Meter

Brand Name : LE

Model Number : LE GYXTW

Certification : ISO 9001,CE,ROHS

Place of Origin : China

MOQ : 3000 meters

Price : USD129-198/km

Supply Ability : 100km per week

Delivery Time : 30days

Packaging Details : Carton/roll

Product Name : Durable LE GYXTW 12 Core Fiber Optic Cable Meter Low Price

Fiber count : 2-48

Color : Black or as You Like

Application : Telecommunication

Jacket Material : PE/LSZH/PU

Armored or Not : Armored

Strength Member : Steel

Operating Temperature : -40 to +70 Degrees Celsius

Contact Now

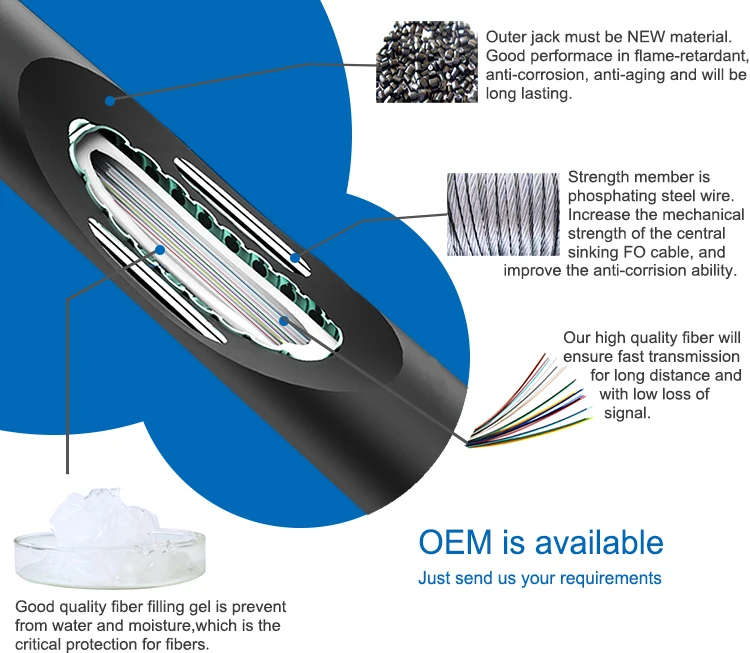

GYXTW fo cable, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Product Description

General Description for Durable LE GYXTW 12 Core Fiber Optic Cale Meter Low Price:

Gyxtw Armored 12 Core Fiber Optic Cable Custom Meter

Fiber Parameters

No.	Items				Unit		Specification
							G.652D
1	Mode Field Diameter		1310nm		μm		9.2±0.4
			1550nm		μm		10.4±0.5
2	Cladding Diameter				μm		124.8±0.7
3	Cladding Non-Circularity				%		≤0.7
4	Core-Cladding Concentricity Error				μm		≤0.5
5	Coating Diameter				μm		245±5
6	Coating Non-Circularity				%		≤6.0
7	Cladding-Coating Concentricity Error				μm		≤12.0
8	Cable Cutoff Wavelength				nm		λ_cc≤1260
9	Attenuation(max.)		1310nm		dB/km		≤0.36
			1550nm		dB/km		≤0.25
No.		Items				Unit		Specification
								OM2 50/125
1		Core Diameter				μm		50.0±2.5
2		Cladding Diameter				μm		124.8±1.0
3		Cladding Non-Circularity				%		≤1.0
4		Core-Cladding Concentricity Error				μm		≤1.5
5		Coating Diameter				μm		245±7
6		Coating Non-Circularity				%		≤6.0
7		Cladding-Coating Concentricity Error				μm		≤12.0
8		Bandwidth(min.)		850nm		MHz·km		600
				1300nm		MHz·km		1200
9		Attenuation Coefficient		850nm		dB/km		≤3.0
				1300nm		dB/km		≤1.0

No.	Items		unit	Specification
No.	Items		unit	OM3 10G-150
1	Core Diameter		μm	50.0±2.5
2	Cladding Diameter		μm	124.8±1.0
3	Core Non-Circularity		%	≤5.0
4	Cladding Non-Circularity		%	≤1.0
5	Core-Cladding Concentricity Error		μm	≤1.0
6	Coating Diameter		μm	245±7
7	Coating Non-Circularity		%	≤6.0
8	Cladding-Coating Concentricity Error		μm	≤12.0
9	OFL Bandwidth	850nm	MHz·km	≥700
9	OFL Bandwidth	1300nm	MHz·km	≥500
10	Effective Modal Bandwidth	850nm	MHz·km	≥950
10	Effective Modal Bandwidth	1300nm	MHz·km	≥500
11	Attenuation Coefficient	850nm	dB/km	≤3.0
11	Attenuation Coefficient	1300nm	dB/km	≤1.0

Application

Gyxtw Armored 12 Core Fiber Optic Cable Custom Meter
